This course teaches the essential skills you will need to start performing basic computational fluid dynamics (CFD) simulations on your own using Ansys Fluent software. Instructor demos and hands-on workshops cover every aspect of the end-to-end CFD workflow, including how to prepare watertight CAD models in Ansys SpaceClaim, and how to perform the entire meshing and solution process in the single-window Ansys Fluent user interface using the task-based, guided workflow for meshing imported, watertight CAD geometry.
Following completion of this course, the student will be able to:
- Use Ansys SpaceClaim to prepare CAD models for use in Ansys Fluent by through the definition of named selections and application of shared topology.
- Use the Watertight Geometry Meshing Workflow in Ansys Fluent to create high quality CFD Simulation meshes from imported CAD geometry through a succession of intuitive guided workflow tasks.
- Set up and complete a basic CFD simulation in Ansys Fluent including defining the problem, calculating the solution and post-processing the results.
- Perform all steps of a CFD simulation from CAD import to meshing to solution to results within the same single window Ansys Fluent environment.
- Use the parametric workflow with Ansys Fluent in Ansys Workbench to execute parametric studies of multiple CFD design points.
Bộ giáo trình bao gồm 2 phần chính:
– Các bài giảng lý thuyết. Fluent-Intro_14.5_L02_IntroCFD
– Các bài hướng dẫn và file thực hành. Fluent-Intro_14.5_WS06_Sliding_Mesh
Lecture 1: Introduction
Lecture 2: Introduction to CFD
Lecture 3: BoundaryConditions
Lecture 4: Post-Processing
Lecture 5: Solver Settings
Lecture 6: Review parrt 1
Lecture 7: Turbulence
Lecture 8: Fluent Heat Transfer
Lecture 9: Non-Conformal Interfaces & Moving Zones
Lecture 10: Best Example Guidelines
Lecture 11: Transient flow modelling
Lecture 12: User-Defined Functions
Lecture 13: Final Review
Lecture 14: Multiphase and Reacting Flows
Workshop 01 Fluid Flow and Heat Transfer in a Mixing Tee
Workshop 02 Using the Discrete Phase Model
Workshop 03 Multi-Species Flow and Post-Processing
Workshop 04 Fluid flow around the NACA0012 airfoil
Workshop 05 Electronics Cooling with Natural Convection and Radiation
Workshop 06 Using Moving Reference Frames and Sliding Meshes

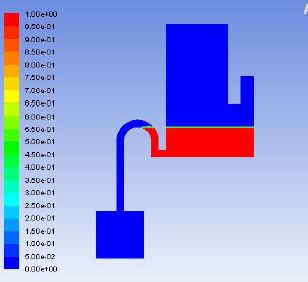

Workshop 07 Tank Flushing

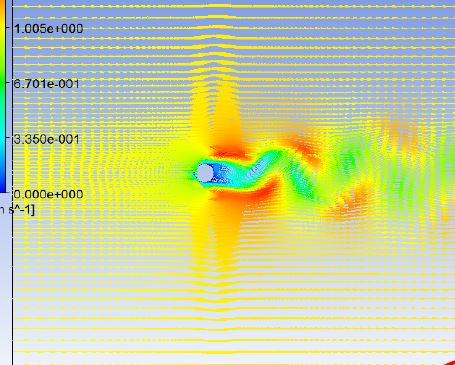

Workshop 08 Vortex Shedding
