This course will be of major benefit to all engineers intending to perform CFD simulations. The basic principles of mesh generation, the workflow and best practices for efficiently creating meshes for Ansys CFD simulations will be presented and practiced.
Following completion of this course, you will be able to:
- Discover the Ansys meshing interface
- Discover the different meshing methods
- Define the mesh global settings on all the geometrical entities
- Define local mesh settings on specific entities
- How to look to the mesh metrics and statistics
- How to improve the mesh quality
Bộ giáo trình bao gồm 2 phần chính:
– Các bài giảng lý thuyết. Introduction_to_Ansys_Meshing
– Các bài hướng dẫn và file thực hành. ANSYS_Meshing_Basics
Lecture 1: Introduction to ANSYS
Lecture 2: Introduction to ANSYS Workbench
Lecture 3: Introduction to ANSYS Meshing

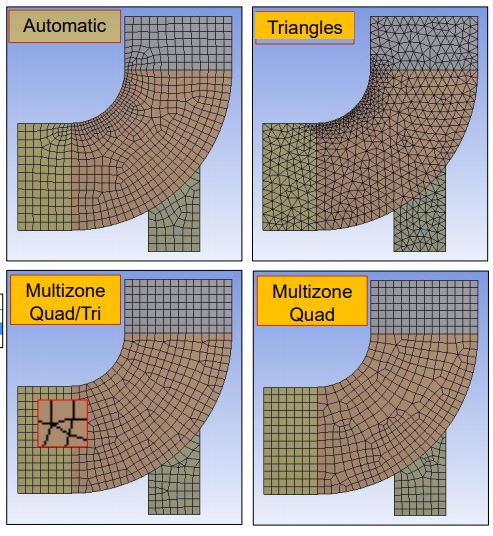

Lecture 4: Meshing Methods
Lecture 5: Global Mesh Controls
Lecture 6: Local Mesh Controls
Lecture 7: Assembly Meshing
Lecture 8: Mesh Quality
Workshop 01 Meshing Mixing Elbow
Workshop 02 Meshing Methods
Workshop 03 Global Mesh Controls
Workshop 04 Local Mesh Controls
Workshop 05 Meshing Mixing Tank
Workshop 06 Meshing Automotive Aero
Workshop 07 Meshing Conical Combustion Chamber
Workshop 08 Manifold
